| Model: | HSF-0865C |
|---|---|
| Inner Conductor: | 0.51mm Silver Plated Copper |
| Dielectric: | 1.68mm PTFE |
| Outer Conductor: | 2.20mm Tin Dipped Copper Braid |
| Jacket: | N/A |
| Impedance: | 50 +/-2 Ohm |
| PDF: | HSF-0865C.pdf |
Inner Conductor: 0.51mm Silver Plated Copper
Dielectric: 1.68mm PTFE
Outer Conductor: 2.20mm Tin Dipped Copper Braid
Application

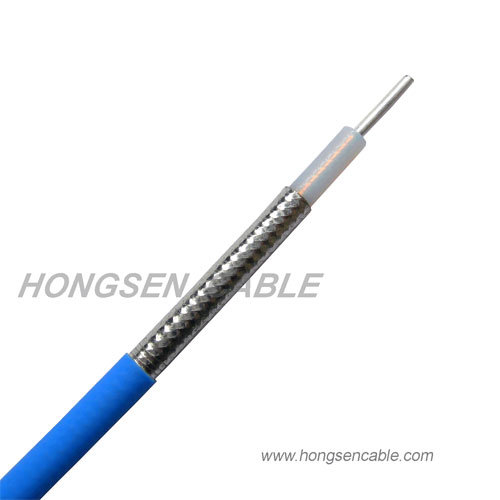

Semi-Flexible coaxial cable, 0.0865 inch diameter 50 ohm coaxial cable with silver-plated copper center conductor, solid PTFE dielectric, and Tin dipped Copper Braid, and extruded FEP jacket is available too.
More information about HSF-0865C, Please view HSF-0865C PDF Specification.
