RF Coax Cable

A comprehensive range of transmission line products used world-wide for antenna feeders, cabling of antenna arrays,radio equipment interconnections,
jumper assemblies and indoor applications.

D-FB Series

Known as the D-FB coaxial cable range, it consists of 4D-FB, 5D-FB, 7D-FB, 8D-FB, 10D-FB and 12D-FB,all with 50 ohm characteristic impedance.
Model Inner Conductor Dielectric Outer Conductor Jacket Impedance PDF Details Inquiry
3D-FB 1.07mm Bare Copper or Copper Clad Steel 3.0mm Foam PE 3.20mm Bonded Aluminum Foil,Tinned Copper Wire Braid (70%) 5.40mm PVC or PE 50 ± 3 Ohm 3D-FB-AL.pdf View detail » Inquire
4D-FB 1.42mm Bare Copper or Copper Clad Steel 3.80mm Foam PE 3.94mm Bonded Aluminum Foil,Tinned Copper Wire Braid (70%) 6.10mm PVC or PE 50 ± 3 Ohm 4D-FB-AL.pdf View detail » Inquire
5D-FB 1.80mm Bare Copper or Copper Clad Steel 5.0mm Foam PE 5.20mm Bonded Aluminum Foil,Tinned Copper Wire Braid (70%) 7.5mm PVC or PE 50 ± 3 Ohm 5D-FB-AL.pdf View detail » Inquire
7D-FB 2.60mm Bare Copper or Copper Clad Steel 7.30mm Foam PE 7.50mm Bonded Aluminum Foil,Tinned Copper Wire Braid (90%) 9.80mm PVC or PE 50 ± 3 Ohm 7D-FB-AL.pdf View detail » Inquire
8D-FB 2.80mm Bare Copper or Copper Clad Steel 7.80mm Foam PE 8.00mm Bonded Aluminum Foil,Tinned Copper Wire Braid (90%) 10.60mm PVC or PE 50 ± 3 Ohm 8D-FB-AL.pdf View detail » Inquire
10D-FB 3.50mm Bare Copper or Copper Clad Aluminum 10.0mm Foam PE 10.20mm Bonded Aluminum Foil,Tinned Copper Wire Braid (90%) 13.0mm PVC or PE 50 ± 3 Ohm 10D-FB-AL.pdf View detail » Inquire
12D-FB 4.40mm Bare Copper or Copper Clad Aluminum 12.4mm Foam PE 12.60mm Bonded Aluminum Foil,Tinned Copper Wire Braid (90%) 15.60mm PVC or PE 50 ± 3 Ohm 12D-FB-AL.pdf View detail » Inquire

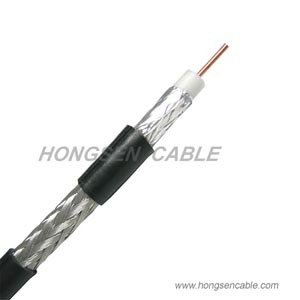

HSR Series

HSR Series Cables are high performance broadband,flexible,low loss 50 Ohm coaxial communication cables designed for wireless application such as: Cellular,
Mobile Antennas, wireless local loop, wireless internet,broadband wireless data. Compared to RG type braided cables, HSR Cables offer far lower loss and better RF shielding.
Model Inner Conductor Dielectric Outer Conductor Jacket Impedance PDF Details Inquiry
HSR100 0.46mm Copper Clad Steel 1.52mm Solid PE Fist Shield: AL/ P Foil Second Shield: Tinned Copper wire braid 2.79mm black PVC 50 ± 3 Ohm HSR100.pdf View detail » Inquire
HSR195 0.94mm Bare Copper 2.79mm Foam PE Fist Shield: Bonded AL/ P Foil Second Shield: Tinned Copper wire braid 4.95mm black PVC 50 ± 3 Ohm HSR195.pdf View detail » Inquire
HSR200 1.12mm Bare Copper 2.95mm Foam PE Fist Shield: Bonded AL/P Foil Second Shield: Tinned Copper wire braid 4.95mm black PVC 50 ± 3 Ohm HSR200.pdf View detail » Inquire
HSR240 1.42mm Bare Copper 3.81mm Foam PE Fist Shield: Bonded AL/ P Foil Second Shield: Tinned Copper wire braid 6.10mm black PVC or PE 50 ± 3 Ohm HSR240.pdf View detail » Inquire
HSR300 1.78mm Bare Copper 4.83mm Foam PE Fist Shield: Bonded AL/ P Foil Second Shield: Tinned Copper wire braid 7.62mm black PVC or PE 50 ± 3 Ohm HSR300.pdf View detail » Inquire
HSR400 2.74mm Bare Copper 7.24mm Foam PE Fist Shield: Bonded AL/ P Foil Second Shield: Tinned Copper wire braid 10.29mm black PVC 50 ± 3 Ohm HSR400.pdf View detail » Inquire
HSR500 3.61mm Bare Copper 9.40mm Foam PE Fist Shield: Bonded AL/ P Foil Second Shield: Tinned Copper wire braid 12.70mm black PVC or PE 50 ± 3 Ohm HSR500.pdf View detail » Inquire
HSR600 4.47mm Bare Copper 11.56mm Foam PE Fist Shield: Bonded AL/ P Foil Second Shield: Tinned Copper wire braid 14.99mm black PVC or PE 50 ± 3 Ohm HSR600.pdf View detail » Inquire
