Model: BT3002 Single Core
Inner Conductor: 0.31mm Bare Copper
Dielectric: 1.95mm Solid PE
Outer Conductor: 91% Tinned Copper Braid
Jacket: 3.55mm PVC
Impedance: 75 ± 4 Ohm
PDF: BT3002 Single Core.pdf

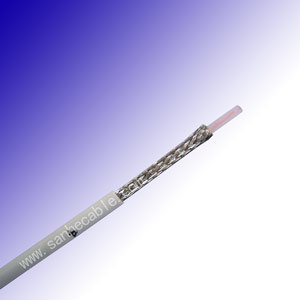

BT3002 / Single Core Coaxial Cable

The cable consists of a plain annealed copper inner conductor,coated with a solid PE dielectric,surrounded by two layers of braided copper wires and sheathed with polyvinyl chloride,Low Smoke Zero Halogen sheath option is also available.

Product Description
  • Conductor: 0.31mm Bare Copper

  • Dielectric: 1.95mm Solid PE

  • Shield: 91% Tinned Copper Braid

  • Jacket: 3.55mm PVC


Application
They are mainly used for indoor installation in the transmission equipments for the digital telephone exchange system. Due to their miniature size they can also be used for other applications where high performance is essential.


More information about BT3002 Single Core, Please view BT3002 Single Core PDF Specification.


BT3002 Single Core.pdf
