HSF-250C Semi-Flexible Coaxial Cable
You are here: Home » Products » Semi-Flexible Coax Cable » 0.250 inch OD (6.35mm) » HSF-250C Semi-Flexible Coaxial Cable
Hot Keywords:
HSF-250C Semi-Flexible Coaxial Cable

loading

sharethis sharing button
Model: HSF-250C
Inner Conductor: 1.63mm Silver Plated Copper
Dielectric: 5.30mm PTFE
Outer Conductor: 6.35mm Tin Dipped Copper Braid
Jacket: N/A
Impedance: 50 +/-2 Ohm
PDF: HSF-250C.pdf
Availability:
Inquire

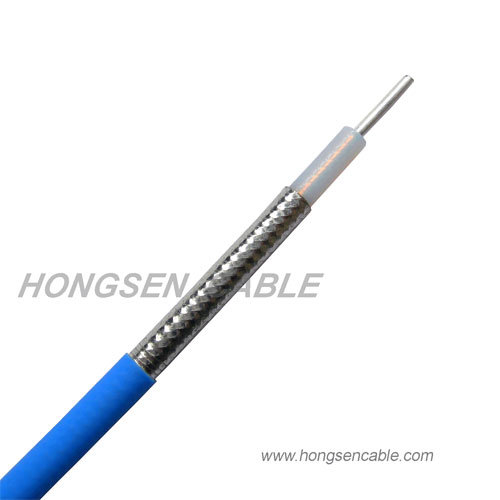

HSF-250C Semi-Flexible Coaxial Cable

Semi-Flexible coaxial cable,0.250 inch diameter 50 ohm coaxial cable with silver-plated copper center conductor, solid PTFE dielectric, and Tin dipped Copper Braid, and extruded FEP jacket is available too.
Product Description

  • Inner Conductor: 1.63mm Silver Plated Copper

  • Dielectric: 5.30mm PTFE

  • Outer Conductor: 6.35mm Tin Dipped Copper Braid


More information about HSF-250C, Please view HSF-250C PDF Specification.


HSF-250C.pdf

0.250 inch semi-flexible cables 6.35mm semi flexible coax cables semi flexbile 50 ohm cable
