Model: RG142
Inner Conductor: 0.94mm Silver Plated Copper Clad Steel
Dielectric: 2.95mm PTFE
Outer Conductor: 95% Silver Plated Copper Braid
Jacket: 4.95mm Brown FEP
Impedance: 50 Ohm
PDF: RG142.pdf

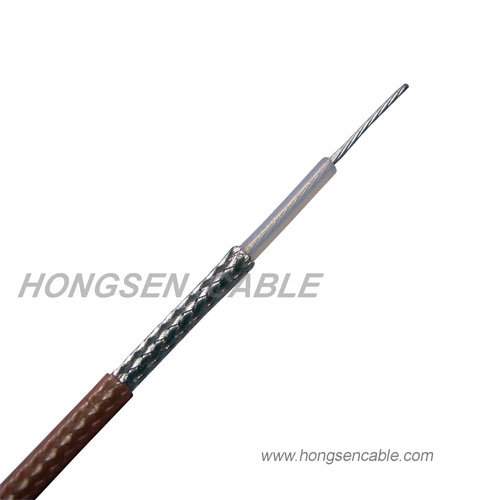

RG142 double shield - Low Loss RF Coaxial Cable

RG142 coaxial cable is commonly used for interconnects and jumpers.Silver Plated Copper covered steel as inner conductor,PTFE dielectric,Silver Plated copper as braid wire, double shield,and FEP as jacket.

Product Description
  • Inner Conductor: 0.94mm Silver Plated Copper Clad Steel

  • Dielectric: 2.95mm PTFE

  • First Shield: 95% Silver Plated Copper Braid

  • Second Shield: 95% Silver Plated Copper Braid

  • Jacket: 4.95mm Brown FEP


Appliction:

RG142 CABLE are used in wireless communication, broadcast and military equipments for transmission of radio frequency signals. Silver Plated Copper covered steel as inner conductor,PTFE dielectric,Silver Plated copper as braid wire, and FEP or PTFE as jacket.


More information about RG142, Please view RG142 PDF Specification.


RG142.pdf
