3D - FB RF Coaxial Cable
You are here: Home » Products » RF Coax Cable » D-FB Series » 3D - FB RF Coaxial Cable

Product Category

Hot Keywords:
Model: 3D-FB
Inner Conductor: 1.07mm Bare Copper or Copper Clad Steel
Dielectric: 3.0mm Foam PE
Outer Conductor: 3.20mm Bonded Aluminum Foil，Tinned Copper Wire Braid (70%)
Jacket: 5.40mm PVC or PE
Impedance: 50 ± 3 Ohm
PDF: 3D-FB-AL.pdf
Availability:

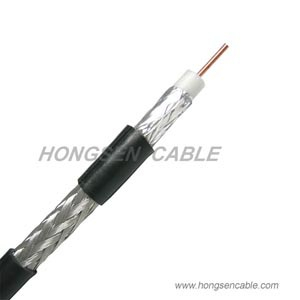

3D - FB RF Coaxial Cable

RF Coaxial Cable 3D-FB, double shielding, consisting of a bonded aluminium foil and high coverage Tinned Copper or Aluminum braiding wire,which can ensure excellent electrical propertity,the inner conductor is Annealed copper or Copper Clad Steel,with great flexibility,easy and convenient for application.
Product Description

  • Conductor: 1.07mm Bare Copper or Copper Clad Steel

  • Dielectric: 3.0mm Foam PE

  • Shield: 3.20mm Bonded Aluminum Foil，Tinned Copper Wire Braid (70%)

  • Jacket: 5.40mm PVC or PE


APPLICATION:
Used as a connection cable in the high signal sequences of the wireless and data communication systems where lower attenuation required.


More information about 3D-FB, Please view 3D-FB PDF Specification.


3D-FB.pdf   3D-FB-AL.pdf
