Model: 5D-FB
Inner Conductor: 1.80mm Bare Copper or Copper Clad Steel
Dielectric: 5.0mm Foam PE
Outer Conductor: 5.20mm Bonded Aluminum Foil,Tinned Copper Wire Braid (70%)
Jacket: 7.5mm PVC or PE
Impedance: 50 ± 3 Ohm
PDF: 5D-FB-AL.pdf

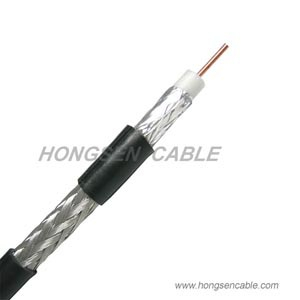

5D - FB RF lower attenuation Coaxial Cable

RF Coaxial Cable 5D-FB, double shielding, consisting of a bonded aluminium foil and high coverage Tinned Copper or Aluminum braiding wire,which can ensure excellent electrical propertity,the inner conductor is Annealed copper or Copper Clad Aluminum,with great flexibility,easy and convenient for application.

Product Description
  • Conductor: 1.80mm Bare Copper or Copper Clad Steel

  • Dielectric: 5.0mm Foam PE

  • Shield:5.20mm Bonded Aluminum Foil,Tinned Copper Wire Braid (70%)

  • Jacket:  7.5mm PVC or PE


Application
5D-FB used as a connection cable in the high signal sequences of the wireless and data communication systems where lower attenuation required.


More information about 5D-FB , Please view 5D-FB  PDF Specification.


5D-FB.pdf    5D-FB-AL.pdf
