Model: 10D-FB
Inner Conductor: 3.50mm Bare Copper or Copper Clad Aluminum
Dielectric: 10.0mm Foam PE
Outer Conductor: 10.20mm Bonded Aluminum Foil,Tinned Copper Wire Braid (90%)
Jacket: 13.0mm PVC or PE
Impedance: 50 ± 3 Ohm
PDF: 10D-FB-AL.pdf

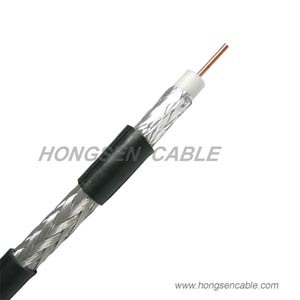

10D - FB RF Coaxial Cable

RF Coaxial Cable 10D-FB, double shielding, consisting of a bonded aluminium foil and high coverage Tinned Copper or Aluminum braiding wire,which can ensure excellent electrical propertity,the inner conductor is Annealed copper or Copper Clad Aluminum,with great flexibility,easy and convenient for application.

Product Description
  • Conductor: 3.50mm Bare Copper or Copper Clad Aluminum

  • Dielectric: 10.0mm Foam PE

  • Shield: 10.20mm Bonded Aluminum Foil,Tinned Copper Wire Braid (90%)

  • Jacket: 13.0mm PVC or PE


Application
Used as a connection cable in the high signal sequences of the wireless and data communication systems where lower attenuation required.


More information about 10D-FB, Please view 10D-FB PDF Specification.


10D-FB.pdf    10D-FB-AL.pdf
