HSF-141C Semi Flexible Coaxial Cable
You are here: Home » Products » Semi-Flexible Coax Cable » 0.141 inch OD (3.58mm) » HSF-141C Semi Flexible Coaxial Cable
Hot Keywords:
HSF-141C Semi Flexible Coaxial Cable

loading

sharethis sharing button
Model: HSF-141C
Inner Conductor: 0.91mm Silver Plated Copper Clad
Dielectric: 2.98mm PTFE
Outer Conductor: 3.58mm Tin Dipped Copper Braid
Jacket: N/A
Impedance: 50 +/-2 Ohm
PDF: HSF-141C.pdf
Availability:
Inquire

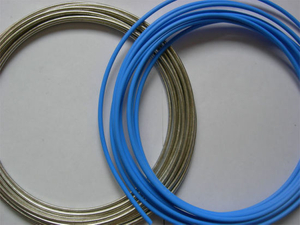

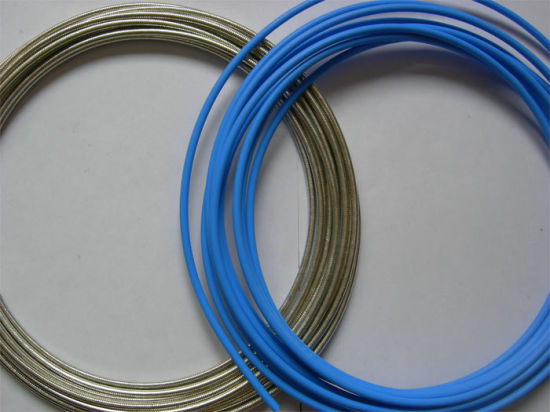

HSF-141C Semi Flexible Coaxial Cable

Semi-Flexible coaxial cable,0.141 inch diameter 50 ohm coaxial cable with silver-plated copper conductor, solid PTFE dielectric, and Tin dipped Copper Braid, and extruded FEP jacket is available.
Product Description

  • Inner Conductor: 0.91mm Silver Plated Copper Clad

  • Dielectric: 2.98mm PTFE

  • Outer Conductor: 3.58mm Tin Dipped Copper Braid


More information about HSF-141C, Please view HSF-141C PDF Specification.


HSF-141C.pdf

0.141 inch semi-flexible cables 3.58mm semi flexible coax cables semi flexbile 25 ohm cable
