Model: HSF-141
Inner Conductor: 0.91mm Silver Plated Copper Clad Steel
Dielectric: 2.98mm PTFE
Outer Conductor: 3.58mm Tin Dipped Copper Braid
Jacket: N/A
Impedance: 50 +/-2 Ohm
PDF: HSF-141.pdf

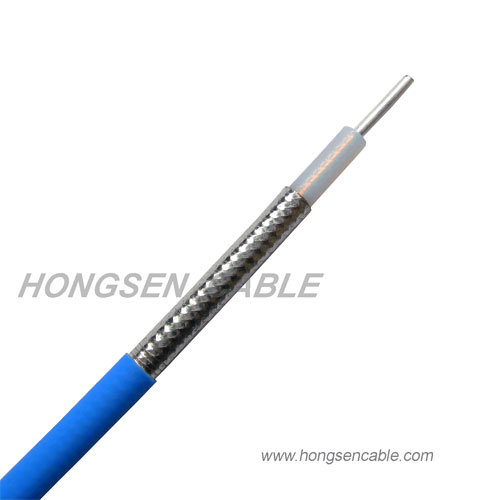

HSF-141 Semi Flexible Coaxial Cable

Semi-Flexible coaxial cable,0.141 inch diameter 50 ohm coaxial cable with silver-plated copper clad steel center conductor, solid PTFE dielectric, and Tin dipped Copper Braid, and extruded FEP jacket is available too.

Product Description
  • Inner Conductor: 0.91mm Silver Plated Copper Clad Steel

  • Dielectric: 2.98mm PTFE

  • Outer Conductor: 3.58mm Tin Dipped Copper Braid


More information about HSF-141, Please view HSF-141 PDF Specification.


HSF-141.pdf
